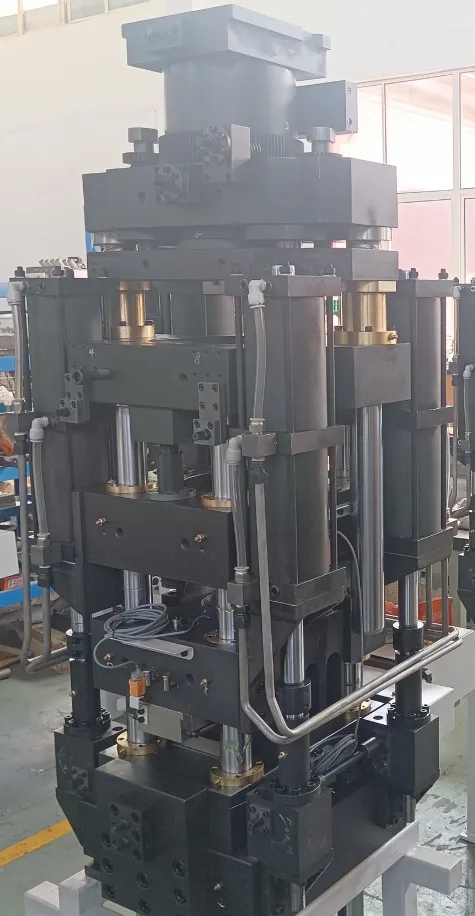

Mold Frame of Powder Forming Machine

Moreover, XGIMI high quality mold frame of powder forming machine is responsible for evenly distributing the molding pressure across the powder material, ensuring uniform compaction and consistent product quality. Any flaws or weaknesses in the mold frame design can lead to uneven pressure distribution, resulting in variations in density, dimensional inaccuracies, and surface deFects in the molded components. Therefore, a well - designed mold frame structure is essential for achieving high - quality, repeatable results in powder servo forming operations.

Types of mold frame structures

There are several common types of mold frame of powder forming machine used in powder servo forming machines, each with its own unique characteristics, advantages, and limitations. These structures are typically classified based on the number of upper and lower molds that come into contact with the powder material during the forming process. The most commonly used mold frame structures include:  " upper 1 - lower 1,"  "upper 1 - lower 2," "upper 1 - lower 3," "upper 2 - lower 2," "upper 2 - lower 3," "upper 2 - lower 4," ... ...

“upper 1 - lower 1”  Mold Frame Structure

“upper 1 - lower 1” mold frame structure is characterized by the presence of a single upper mold and a single lower mold, with only one mold in contact with the powder material during each molding cycle. This simple yet effective design offers several advantages, making it a popular choice for applications where high surface finish and dimensional accuracy are paramount.

One of the primary benefits of the “upper 1 - lower 1” mold frame structure is its ability to ensure a high - quality surface finish on the molded products. With only one mold in contact with the powder material, there is less chance of surface imperfections or scratches caused by the interaction between multiple molds. This results in smooth, defect - free surfaces that meet the strict quality requirements of many industries, such as automotive, aerospace, and electronics.

In addition to its superior surface finish capabilities, the“upper 1 - lower 1” mold frame structure also offers excellent dimensional accuracy. The single - mold configuration allows for more precise control over the molding process, enabling manufacturers to produce components with tight tolerances and consistent dimensions. This is particularly important for applications where the fit and function of the molded parts are critical, such as in the production of precision mechanical components and medical devices.

Another advantage of the “upper 1 - lower 1” mold frame structure is its relatively low friction and wear characteristics. With only one mold in contact with the powder material, there is less mechanical stress and abrasion on the mold surfaces, resulting in longer mold life and reduced maintenance costs. This makes the “upper 1 - lower 1” mold frame structure a cost - effective solution for manufacturers looking to optimize their production processes and minimize downtime.

However, the “upper 1 - lower 1” mold frame structure also has some limitations. One of the main drawbacks is its relatively slow forming speed. Because only one mold is used in each molding cycle, the process requires more time to complete, which can limit the production capacity of the powder servo forming machine. Additionally, the single - mold configuration may result in uneven pressure distribution, especially for complex or large - volume components, which can affect the quality and consistency of the molded products.

XGIMI's Mold Frame Design Capabilities

In mold frame design and manufacturing, XGIMI is known for its innovative technology, engineering expertise and commitment to innovation. XGIMI has a team of highly skilled engineers and designers who have developed a range of advanced Die-Set of Powder Molding Machines that combine the best features of different configurations while addressing their limitations through innovative designs.

Our ability to utilize the latest advances in materials science, mechanical engineering and manufacturing technology for in-depth research and development. By continuously exploring new materials, design concepts and manufacturing processes, XGIMI is able to develop mold base structures with superior performance, durability and efficiency compared to traditional designs.

XGIMI's mold frame designs are also characterized by their high level of customization and flexibility. XGIMI works closely with its customers to develop tailor - made mold frame solutions that meet their specific needs. Whether it's a high - precision mold frame or a high - speed mold frame, XGIMI has the expertise and capabilities to deliver the perfect solution.

Another notable aspect of the XGIMI Die-Set of Powder Molding Machine design is its focus on intellectual property protection. XGIMI has invested heavily in R & D, resulting in a proprietary, patented mold base design and manufacturing process portfolio. These patents not only guarantee XGIMI's technological progress, but also provide customers with the guarantee of using innovative, high-quality products, which are backed by strong intellectual property rights.

In addition, XGIMI's formwork design focuses not only on performance and quality, but also on sustainability and environmental friendliness. By using advanced materials and manufacturing processes, XGIMI is able to reduce the environmental impact of its formwork production while improving the energy efficiency and recyclability of its products.
