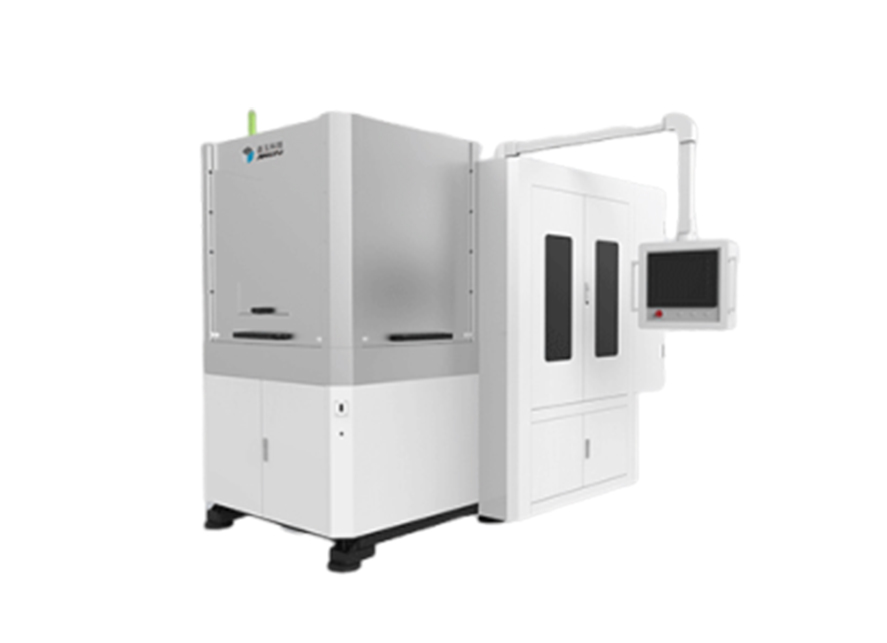

1. Introduction to SDX1360 Multi Wire Cutting Machine

The SDX1360 Multi Wire Cutting Machine is engineered to provide parallel cutting of multiple workpieces, improving efficiency for industrial production lines. Its CNC-controlled multi-wire system ensures uniform cutting and high precision, making it suitable for industries such as:

• Aerospace and automotive component manufacturing

• Industrial tool production

• Metal and composite material processing

• Electronics and semiconductor manufacturing

Core Components Include:

• Multi-wire cutting head with adjustable tension

• Servo-driven wire feed system for precise positioning

• High-strength tungsten carbide or HSS wires

• CNC control panel with touch interface

• Lubrication and cooling system for extended wire life

• Workpiece fixtures for alignment and stability

2. Technical Services Overview

The SDX1360 comes with a comprehensive suite of technical services to ensure optimal performance and long-term operational efficiency.

2.1 Installation and Commissioning

• Professional on-site installation and calibration

• Verification of machine alignment, wire tension, and cutting accuracy

• Test runs using sample materials to confirm performance

2.2 Operator Training

• Hands-on training for operational safety and efficiency

• Programming of CNC sequences and cutting parameters

• Guidance on maintenance routines and troubleshooting

2.3 Preventive Maintenance Support

• Recommendations for daily, weekly, and monthly maintenance tasks

• Assistance in optimizing wire replacement schedules and cutting speed

• Remote monitoring and support to reduce unplanned downtime

2.4 Software and Firmware Services

• Regular firmware and CNC software updates

• Integration support with existing production management systems

• Customization of cutting sequences based on client requirements

3. Warranty and Quality Assurance

The SDX1360 Multi Wire Cutting Machine includes a comprehensive warranty and quality assurance program, ensuring customers receive reliable equipment and prompt support.

3.1 Warranty Terms

Notes:

• Consumables such as cutting wires, lubricants, and coolant fluids are not included.

• Warranty claims require documentation of machine serial number and installation date.

3.2 Quality Certification

• ISO 9001 certified manufacturing process

• CE certification for safety and operational standards

• RoHS compliant materials and electronic components

4. Installation Conditions and Site Requirements

Proper installation is crucial to maximize the SDX1360’s performance and longevity. The following conditions should be met before setup:

4.1 Site Preparation

• Flooring: Solid, vibration-free foundation capable of supporting the machine weight (~2000–2500 kg)

• Space Requirements: Minimum clearance of 1.5 meters around the machine for operation and maintenance

• Environmental Conditions:

• Temperature: 10–40°C

• Humidity: 20–80% (non-condensing)

• Dust-free environment to prevent wire contamination

4.2 Electrical Requirements

• Standard industrial power: 380V / 3-phase / 50–60 Hz

• Proper grounding and circuit protection

• Surge protection recommended to safeguard CNC electronics

4.3 Cooling and Lubrication

• Continuous supply of filtered coolant to the wire cutting system

• Lubrication points regularly serviced as per maintenance schedule

4.4 Installation Process

1. Transport machine to pre-prepared site using appropriate lifting equipment.

2. Level the machine using adjustable feet and precision spirit levels.

3. Connect power supply and verify grounding.

4. Install coolant and lubrication systems.

5. Run preliminary test to calibrate wire tension, feed rate, and cutting alignment.

5. After-Sales Support and Maintenance

After-sales support ensures maximum uptime and reliability for the SDX1360 Multi Wire Cutting Machine.

5.1 Technical Assistance

• 24/7 remote support via phone or online communication

• Assistance with troubleshooting, programming, and operational guidance

5.2 Spare Parts Availability

• Rapid supply of replacement wires, motors, sensors, and electrical components

• Dedicated support team to manage urgent orders

5.3 Scheduled Maintenance Visits

5.4 Customer Support Benefits

• Reduces downtime and production loss

• Ensures consistent cutting quality and precision

• Provides peace of mind with guaranteed response times for service calls

6. Conclusion

The SDX1360 Multi Wire Cutting Machine is a high-performance industrial solution offering precision, efficiency, and reliable operation. Its combination of multi-wire design, CNC control, and comprehensive technical support makes it suitable for industries requiring high throughput and consistent quality.

Key Highlights:

• Professional technical services for installation, training, and preventive maintenance

• Comprehensive warranty covering mechanical, electrical, and control systems

• Clear site preparation and installation requirements for optimal performance

• Robust after-sales support including remote assistance and spare parts supply
